A pair of ControlIt HO Scale Printed Circuit Board (PCB) Sleepers are designed to hold rails in place when crossing baseboard joins, lift up or lift out sections, turntables, traversers, storage cassettes, or anywhere that requires a reliable rail alignment wherever there is a track separation.

ControlIt PCB Sleepers are suitable for a range of HO scale track. Sleeper dimensions and spacing have been scaled from the Data Sheets Trackwork Manual for the New South Wales Railways (Note: product dimensions may vary very slightly due to manufacturing tolerances). Individual solder points for the rails represent sleeper plates as used on the prototype. The rails are electrically isolated and the top finish applied to the boards restricts solder to the sleeper plate areas, resulting in a neat and durable track join.

To use the PCB Sleepers:

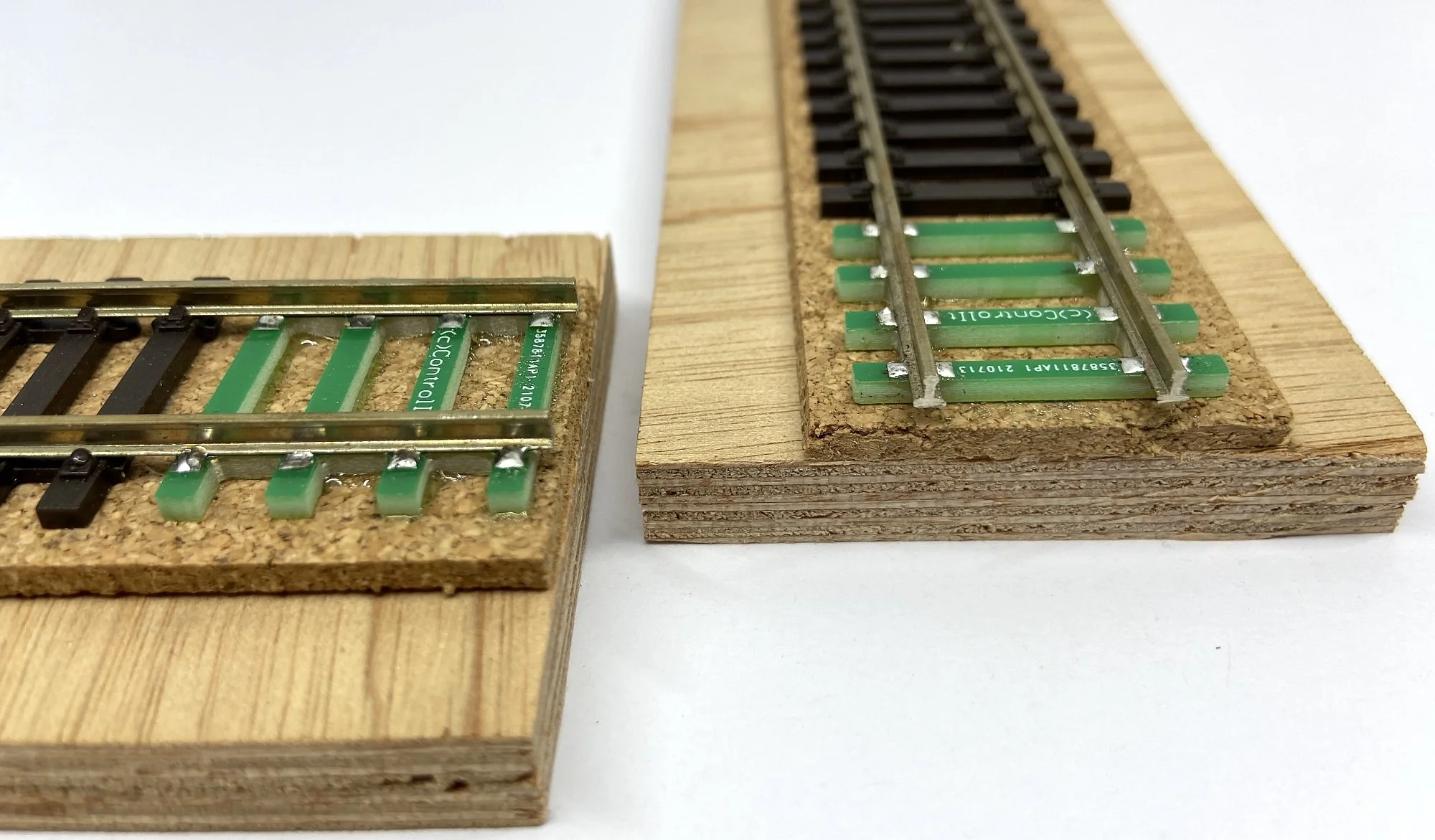

• Remove the plastic sleepers from your track and insert the PCB sleepers in their place under the rails on either side of the join

• Place the track over the join and solder the rails to the PCB solder points

• The PCB Sleepers can be held in place with glue, a 2-part epoxy (Araldite et cetera) is recommended for a strong bond

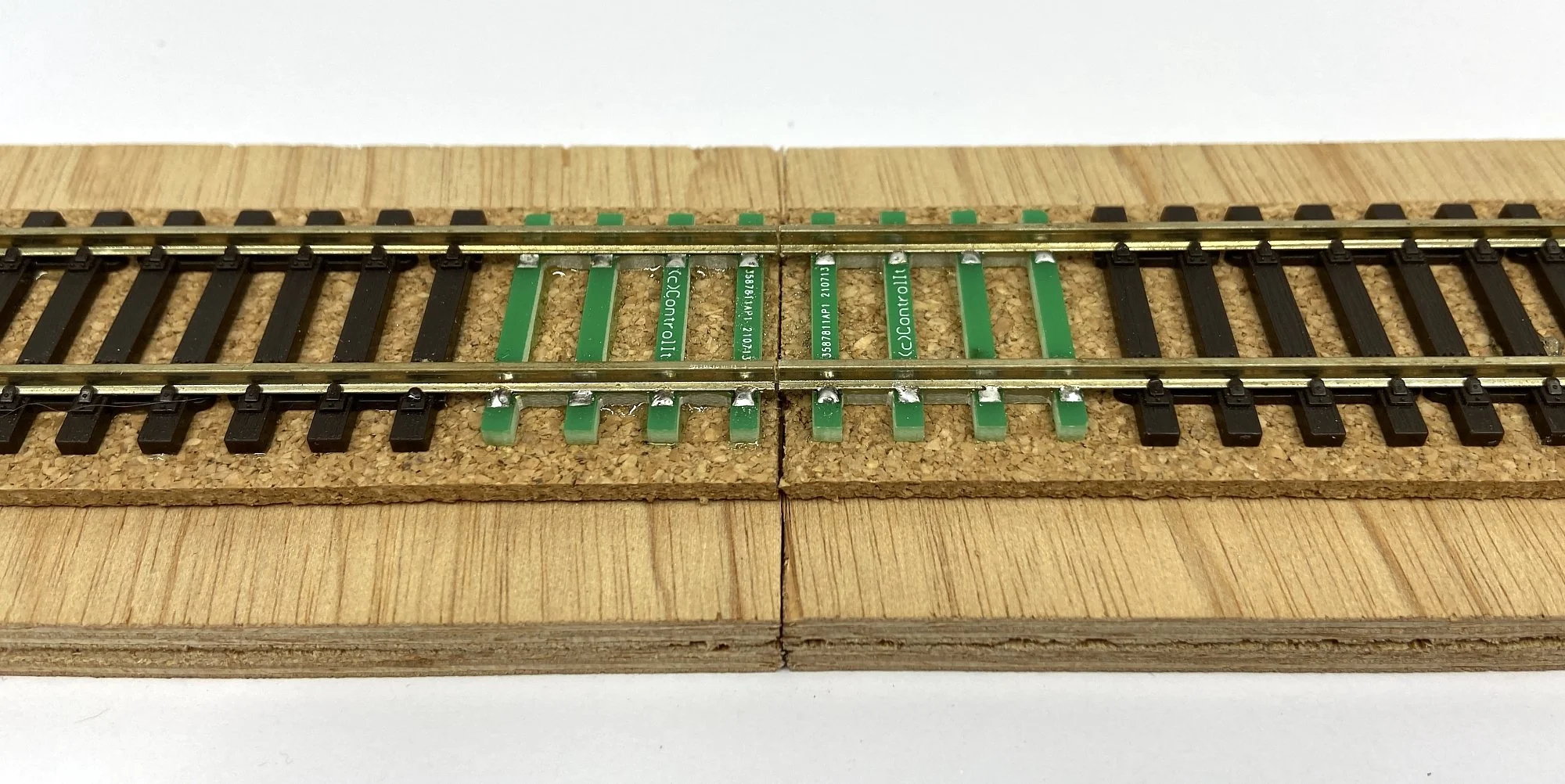

• Once installed the rails are cut across the join between the pair of PCB sleepers

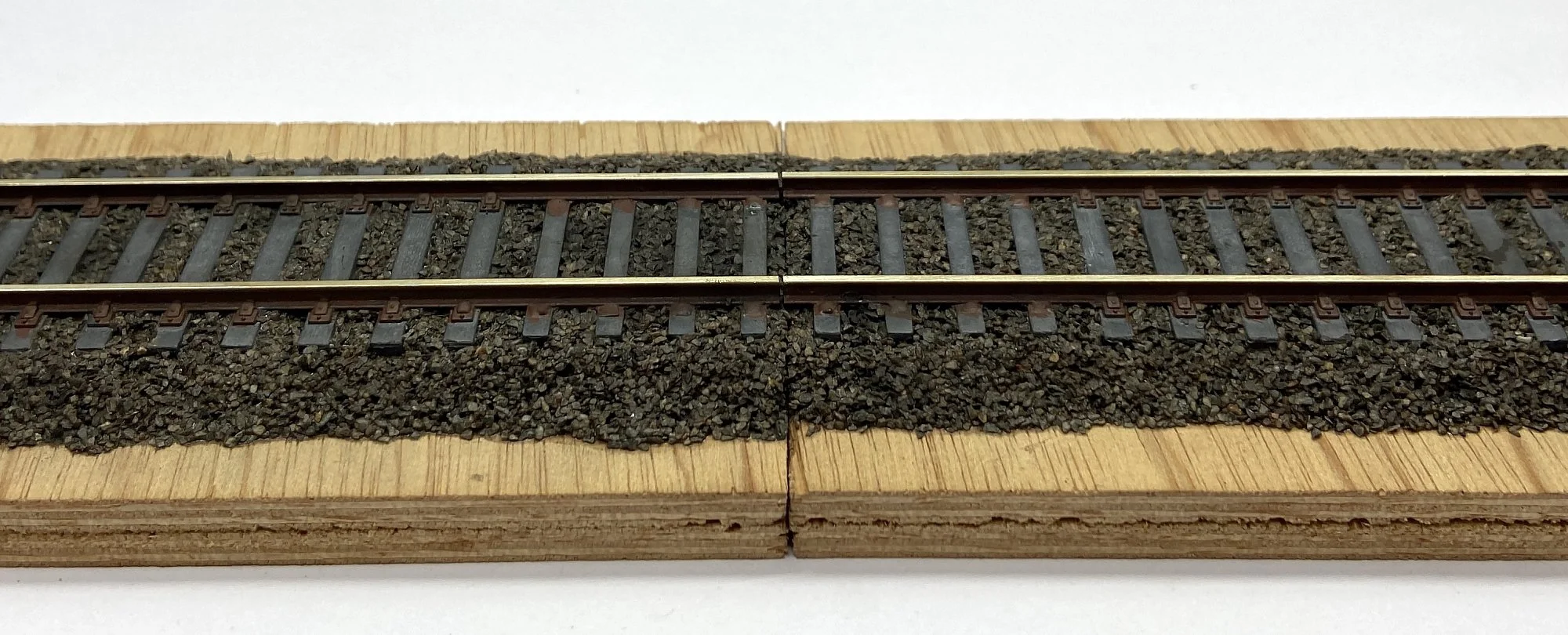

• The sleepers can be painted after installation

On curved track the sleepers can be used as-is, or for accurate sleeper alignment they can be cut and soldered to the rail separately to suit the radius. A cutoff disk in a motor tool can be used to cut the webbing between sleepers.
